Idler Trolley Single Hook Hoists

Idler Trolley Single Hook Hoists
Single Hook Idler Trolley
  • Ideal for low capacity applications where motorized horizontal movement is not required
  • Standard capacities available up to 20,000 lbs
  • See catalog for available lift speeds
  • Engineered for use on S-beams, W-beams, or patented tracks
  • Ideal for bridge cranes, monorail tracks, jib, gantry, or cantilever applications
  • Can be used to negotiate monorails with curved tracks
  • Optional trolley wheel material: Hardened Steel, Bronze, or Stainless steel

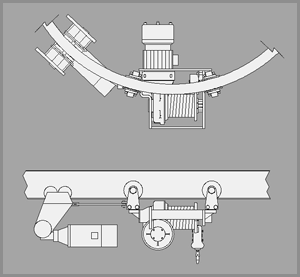

When a monorail system has a radius present and motorized horizontal movement is required, the Electrolift Plain Trolley hoist can be mated to a tractor drive (see sidebar thumbnail).

View Catalog
AutoCAD Drawing Information
  • All drawings are AutoCAD 2000 format (*.dwg)
  • The three (3) hoist views are each defined as individual blocks and are on the ‘HOIST-Drawing #’ layer. (ex. HOIST-A100)
  • The ‘DIMENSIONS’ and ‘BORDER’ layers are locked.
  • The drawing file can be inserted directly into an existing layout by copying and pasting the hoist views. All objects are drawn at full size (1:1)

Note: Only registered, logged-in users are allowed to download Electrolift CAD files. Registered users login here. Not registered? Click here to register.
